Cone crushers  are the important crushing machines in stone crushing industry. China Kefid company is a leading manufactuer in cone crusher design and making with over 20 years experience.  We have four types cone crusher: CS Cone Crusher, HST Cone Crusher, HPT Cone Crusher and Spring Cone Crusher, which are widely used to crush various mineral stones and bulk materials to medium size.

CS Cone Crusher

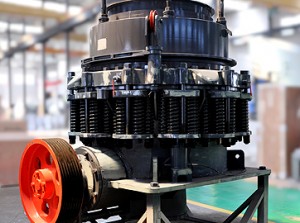

CS Cone CrusherCS cone crusher is a kind of high efficiency spring cone crusher, which integrate optimization of cavity-type and reasonable stoke and advanced technology, and follows the conception of laminated crushing principle of more crushing and less grinding. CS Cone Crusher made plaster stone and engine oil separated, assured reliable performance. The type of crushing chamber depend upon the size of feed and fineness of the crushed product.

(Mm to inch conversion: 25.4millimeters=1 inch)

Model Dia. mm (inch) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/h) Weight (t) Dimension (mm)
Closing Side (mm) Open Side (mm)
CSB75 900 (3′) Fine 83 102 9-22 580 75 45-91 15 2821×1880×2164
Coarse 159 175 13-38 59-163
CSB160 1295 (4 1/4′) Fine 109 137 13-31 485 185 109-181 27 2800×2342×2668
Medium 188 210 16-38 132-253
Coarse 216 241 19-51 172-349
CSB240 1650 (5 1/2′) Fine 188 209 16-38 485 240 181-327 55 3911×2870×3771
Medium 213 241 22-51 258-417
Coarse 241 268 25-64 299-635
CSB315 2134 (7′) Fine 253 278 19-38 435 315 381-726 110 4613×3251×4732
Medium 303 334 25-51 608-998
Coarse 334 369 31-64 789-1270

HPT Cone Crusher

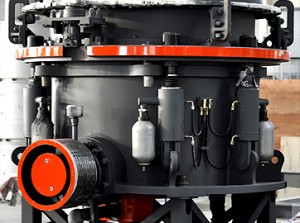

HPC Cone CrusherHPT Cone Crusher is designed to meet clents’s request of the high outputs, excellence product fineness and economical running costs. HPT cone crusher introduced the germany technology, not only improves the production capacity and crushing efficiency, but also widens applying area, hardness range of materials from limestone to basalt. HPT cone crusher is an ideal crusher for large stone crushing factory and mining industry.

(Mm to inch conversion: 25.4millimeters=1 inch)

Type Cavity
(coarse/fine)
Min. discharge
size (mm)
Feed size
(mm)
Capacity (t/h) Power
(kW)
Weight
(t)
movable cone
diameter (mm)
HPT-200 C 13 150 120-240 160 13 950
F 6 76 55-180
HPT-300 C 20 240 190-380 250 18 1160
F 13 145 110-260
HPT-400 C 13 290 190-610 315 26 1400
F 30 100 108-320
HPT-500 C 16 320 380-700 400 33 1500
