Mobile Crushing Plant in Chile

2
  • Customer Country: Chile
  • Rock Type: river stone, cobble, pebble
  • Max. Feed Size: 400 mm
  • Crushing Capacity: 100-150 ton per hour
  • Final product size: 5 mm, 10 mm, 15mm
  • Equipments & Plant: Mobile Jaw CrusherYG938E69 + Mobile Cone Crusher Y3S1848CS75

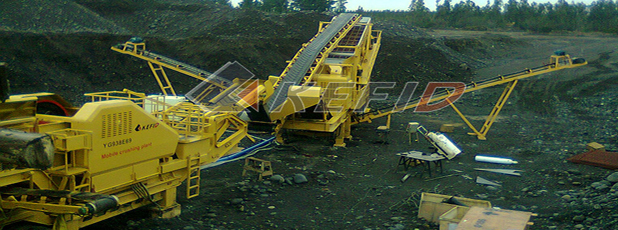

Mobile jaw crusher (vibrating feeder ZSW960x3800 + jaw crusher PE 600×900) is used to feed material and crusher large size river stone to small size. The belt conveyor equipped in mobile jaw crusher will send the material to mobile cone crusher.

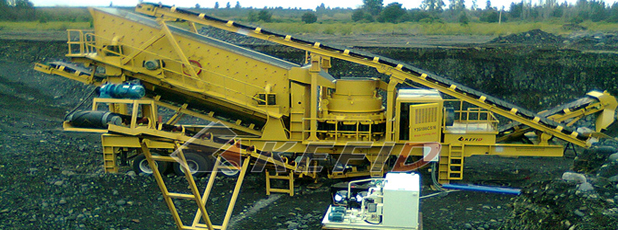

Mobile cone crusher (cone crusher CS160 + vibrating screen 3YZS1848) is used to crush stone to the final products. This type of mobile crushing plant stuiable for crushing hard stone, like river stone.

These two sets of mobile crusher are working together as a complete mobile crushing plant.

The final river stone will be separate to four types, the three final products (5 mm, 10 mm, 15mm ) will be conveyed to the products piles, and the material above 15mm will be sent back to mobile cone crusher for further crushing.
