A 120 tph granite crushing line used in Zambia. The project is mainly used for the construction of local roads, Therefore, there are certain requirements for the grain size of sand aggregate.

• Output size : 0-5mm、5-20mm、20-40mm
• Capacity: 120 tph
• Equipment: GZD960×3800 Vibration feeder、PE600×900 Jaw crusher、PF1214 Impact crusher、3YZS1860 Vibrating screen

The granite aggregate with a size of 300-400mm is transported by GZD960×3800 vibrating feeder to PE600×900 jaw crusher for coarse crushing. The gravel aggregate with a particle size of 120mm enters the PF1214 impact crusher for finely crushed, the material less than 60mm after being finely chopped directly enters the 3YZS1860 vibrating screen for screening, while the material larger than 40mm and less than 60mm will enter the impact crusher again for secondary crushing, and the final output will be 0-5mm, 5-20mm, 20 -40mm of finished aggregate is used for local infrastructure construction.

Malawi 200 TPH Granite Mobile Crushing Plant, you can contact with us for more support.

• Feeding size (mm) : 700 mm
• Output size : 0-5-10-15-25 mm
• Capacity : 200 tph
• Equipment : YG114C811+YG120HP300+Y4S216HP300

This line includes three sets of mobile crushers: YG114C811 mobile jaw crusher +YG120HP300 mobile coarse cone crusher+Y4S216HP300 mobile fine cone crusher. This is a three stages crushing line. Passing through the hopper, the granite raw materials are fed by vibrating feeder ZSW1100X4200 into the European-tech jaw crusher JC840X1100 evenly and gradually for primary crushing. And the waste will be collected under the vibrating feeder and transported by side belt conveyor.

This project is part of China Transportation Construction Group’s Qatar Express Project. The equipment has been operating smoothly and stably after being put into production, and has made significant contributions to the Qatar project of China Communications.

Material : Metal ore and non-metallic minerals

Capacity : 200 ton/hour

Philippines 150 tph river sand making line, you can contact with us for flowchart or quotation.

• Material : river stone
• Output size : 0-5 mm sand
• Feeding size : max 500 mm
• EQUIPMENT : ZSW1100X4200+PE750X1060+HPT300+VSI5X9532+3YZS2160

This client required a 150 tph artificial sand production line, and the raw material is river stone. So we design a 3 stage crushing production line for him, the primary jaw crusher PE750X1060, secondary hydraulic cone crusher HPT300 and the tertiary sand making crusher VSI5X9532. This can produce the 0-5mm sand with an up to 150tph actual capacity. Meanwhile, the spare parts cost will be less because we applied the rock on rock principle for the wet river stone. And the clients are very satisfied with our crushers, as a lot of money has been earned from this line.

What crusher suitable for river stone crushing? As we know, river stone is a natural stone, with the properties of hard quality, good pressure resistance, wear-resistant and corrosion-resistant, is an ideal green building material.

River stone crusher usually are jaw crusher, cone crusher, sand making machine and other equipment. These devices are collocated into a production line, together to complete the crushing operation of the river stone.

Jaw crusher is used for river stone coarse crushing, it can crush the large pieces of river stone to medium size.

If you want to produce gravel of 0-5,5-10,10-20mm such specifications, only jaw crusher is not enough. The gravel needs to feed into cone crusher and sand making machine for fine crushing and shaping to produce standard building sand.

How much the 120 tph river stone sand making production line? Contact for quotation.

• MATERIAL : river stone
• OUTPUT SIZE : 0-5mm sand
• FEEDING SIZE : max 500mm
• EQUIPMENT : ZSW1100X4200+PE600X900 +HPT200+VSI5X8518+3YZS2160

Process Description :

A 120 tph artificial sand production line, and the raw material is river stone. So we design a 3 stage crushing production line for him, the primary jaw crusher PE600X900, secondary hydraulic cone crusher HPT200 and the tertiary sand making crusher VSI5X8518. This can produce the 0-5mm sand with an up to 120 tph actual capacity. Meanwhile, the spare parts cost will be less because we applied the rock on rock principle for the wet river stone. And the clients are very satisfied with our crushers, as a lot of money has been earned from this line.

Crawler type mobile crushing and screening plant mainly includes crawler type mobile jaw crusher, crawler type mobile impact crusher, crawler type mobile cone crusher and crawler type mobile screening plant.

• Materials: construction waste
• Capacity: 150 t/h
• Feeding size: 500mm
• Output size: 0-5mm, 5-20mm, 20-40mm

This project is located in Mexico, due to site constraints and other factors, after multi-inspections,the customers purchased Kefid’s YG938E69L, Y3S1860F1214 mobile crushing station. The final products has good grain shape and suitable for concrete aggregate, especially for the construction waste recycling.

The 120th China Import and Export Fair ( Canton Fair) will be held in Guangzhou from Oct 15,2016 to Oct 19,2016. Canton Fair is the best communication platform for mining, crushing, grinding and mineral ore processing industry. so if you have requirement on mining crusher, stone crusher, grinding mill for quarry, aggregate, mill powder, cement plant, beneficiation etc., Welcome to visit our booth to know more details about stone crusher,grinding mill or mobile crusher. You will get the best service and new experience.

• Exhibition Name: The 120th Canton Fair
• Dates: October 15th-19th, 2016
• Opening time: 9:00-18:00 for seller; 9:30-18:00 for buyer
• Venue: Gunagzhou International Conference & Exhibition Center, No.380, Yuejiangzhong Road, Haizhu District, Guangzhou
• Large Machinery & Equipment Area
• Booth No.: 2.1H46

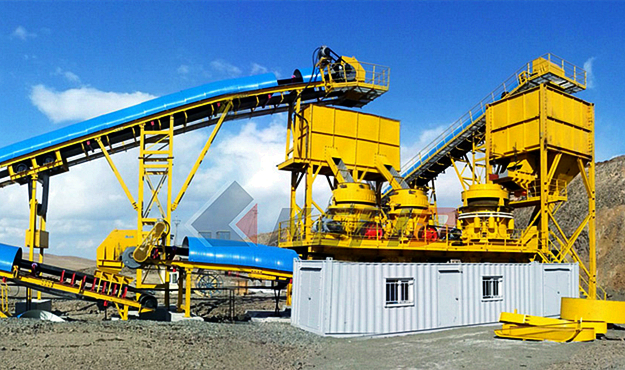

In the picture, it is a granite aggregate crushing plant, our customer who would like to produce granite to make material  for road construction, concrete and asphalt industry. Our engineer team help him choose one two-stage crushing plants that consisted of one PE 900×1200 jaw crusher and two finer HPT 200 cone crushers. The output sizes are processing to meet the popular aggregate size of 0~3/16″ (stone dust), 3/16~1/2″, 1/2~3/4″ and 3/4~1″ in local market.
