VSI6X1263 vertical shaft impact crusher

VSI6X1263 vertical shaft impact crusher is a new type sand crushing plant. Our company based on years of practical experience in the development, and have independent intellectual property rights.

Range of Application:

  • The device is suitable for brittle materials Mohs hardness of less than 9, and is not suitable for viscous material and soil containing more material;
  • It can be widely used in metal and non-metallic minerals, building materials, artificial sand and a variety of metallurgical slag crushing and shaping;
  • VSI6X1263 crusher suitable for the requirements of moisture content of materials below 20%;
  •  It can be used for coal and calcium carbide and other special combustible materials processing.

VSI6X1263 vertical shaft impact crusher


Model VSI6X1263
Sand making shaping
Center feeding capacity(t/h) 454-486 547-586
Max Feed Size(mm) 50 60
Rotation speed (r/min) 1200~860
Power for double motor (kW) 630
Overall Dimension L×W×H (mm) 5700X2980X4190
Weight (t) Rock on Rock 20
Rock on Iron 23
Power Source



Lubrication hydraulic pressure station Rate of flow(L/min) 20
Power for double oil pump 0.75
Safety Protection No oil flow automatic stop; Air cooling; Winter heating system startup.
Power for oil box heater 4

Note: Any change of technical data shall not be advised additionally.

VSI Crusher

VSI series crushers(Sand Making Machine) made by kefid are specially designed for sand making and trueing of various stones and rocks. Kefid has developed internationally advanced patent technology which is able to provide users with high efficiency, less using cost. We have two types of VSI crusher: Deep Rotor VSI Crusher and B Series VSI Crusher. They are suitable for medium and fine crushing of different hardness of varied ore and rock, such as iron ore, nonferrous ore, diamond, bauxite, quartz sand, corundum, perlite, basalt and other aggregate material’ medium and fine crushing.

Deep Rotor VSI Crusher

Deep Rotor VSI CrusherDeep Rotor VSI Crusher integrates many patents and three crushing methods, is a new and high efficiency crusher.  The rotor of deep rotor VSI crusher has been specially optimized design, which makes the capacity increased by about 30%. Around guard adopts innovative design to improve the service life of over 48%. Increase vice hammer to prevent from damaging the side plate after the main hammer wear and tear. The most key wear resistant material uses wear resistant and high temperature resistant material in American important area. Japanese hydraulic opening cover device is originally imported.

Main technical parameters:

model DR-7615 DR-8522 DR-9532 DR-1145
Throughput capacity (t/h) Center and Ring feeding 150~280 240~380 350~540 500~640
Center feeding 70~140 120~200 180~280 250~360
Max. Feed Size (mm) Soft material <35 <40 <45 <50
Hard material <30 <35 <40 <45
Rotation speed (r/min) 1700~1900 1500~1700 1300~1510 1100~1310
Power of double motor (KW) 110~150 180~220 260~320 400~440
Overall dimension L x W x H (mm) 4100×2330×2300 4140×2500×2700 4560×2600×2900 5100×2790×3320
Weight (t) 8.6 11.8 17.5 27.5

B Series VSI Crusher

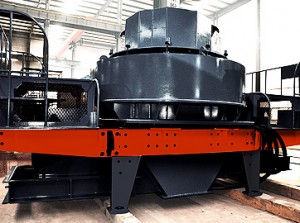

Sand Making CrusherB series VSI crusher is newly researched equipment, with international advanced level. The machine is specifically for the production of high-quality gravel aggregate used in highway, railway, high-rise buildings, municipal, hydroelectric dam construction, and concrete mixing sand, and it is the first choice of the artificial sand making area and stone shaping area. It is applicable to the fine crushing techniques in the front of mining sector, and applicable to the material crushing of building materials, mining, refractories, cement, and abrasive industry. Besides, it also can be used in highly abrasive material and secondary disintegration crushing of it.

Main technical parameters:

Model B-7611 B-8518 B-9526 B-1140
Capacity (t/h) Center and Ring feeding 120-180 200-260 300-380 450-520
Center feeding 60-90 100-130 150-190 225-260
Max Feed Size (mm) Soft material <35 <40 <45 <50
Hard material <30 <35 <40 <45
Rotation speed (r/min) 1700-1890 1520-1690 1360-1510 1180-1310
Power for double motor (kW) 110-150 180-220 264-320 400-440
Overall Dimension L×W×H (mm) 3700×2150×2100 4140×2280×2425 4560×2447×2778 5000×2700×3300
Weight (t) 7.8 10.3 16 25.6
