Iron Ore Crusher

Iron ore mining methods vary by the kind of ore being mined. You can find four major forms of iron ore deposits worked currently, with respect to the mineralogy and geology of the ore deposits. These are magnetite, titanomagnetite, massive hematite and pisolitic ironstone deposits.

Iron Ore Crushing Machine

Iron ore refers back to the ore containing iron or iron compound, which is one of the most important garbage in output of steel. There are many large-scale iron ore area which have high value of exploitation australia wide, Brazil, India, SA, Canada, Ukraine, Liberia as well as other countries. Main iron ores are magnetite,limonite, hematite ore, iron silicate ore, iron silicate mineral, etc. Probably the most widely used crushers in iron ore mining business are jaw iron ore crusher, cone crusher, hammer iron ore crusher and high-efficient iron ore fine crushers, etc. In iron ore mining, consumers usually choose a complete iron ore crushing  production line for better efficiency. Currently, typically the most popular iron ore production line consists of two jaw crushers. After iron ore crushing, the fabric is going to be sent for the magnetic separation, and then in to the ball mill for grinding.

Iron Ore Process Plant

The world’s iron ore resources are concentration australia wide, Brazil, Ukraine, Russia, Kazakhstan, India, the usa, Nigeria, Canada as well as other countries. Nearly all iron ore experiences iron ore processing and it is utilized to make steel. Iron ore processing can be a procedure that contains explosions, shoveling, moving, crushing, grinding, pelletizing etc. Iron ore processing provides a range of coarse sizing that may produce material in 24-inch to .0017-inch particle sizes.

In iron ore crushing and screening process is really a basic connect to concentrator will have an effect on producing indicators. Methods accustomed to include jaw crushing, impact crushing, roll crushing, and pulverizing. To make iron ore size as fine as you can before entering into ball mill, iron ore processors usually are use cone crushers in pre-grinding stage, cone crusher come with an excellent fine crushing power to minish iron ore size. In coarse crushing, 2.1m or 2.2m gyratory crusher is usually being selected, in medium crushing process, processer usually use regular cone crusher, plus fine crushing, short-head kind cone crusher would work.

Tantalite Crusher and Grinding Equipment

Tantalite is group name for minerals with the chemical formula (Fe,Mn)(Ta, Nb)2O6 and it is a brown black, almost completely black orthorhombic shape mineral. Tantalite is located mainly in granite pegmatites also it accumulates up in drifts and after that it’s extracted as Ta ore. Tantalum is really a chemical element found in tantalite which is noted for its hardness and resistant against corrosion. Tantalum is very rare.   In the tantalum processing plant, we have to pulverize the big tantalite into small particle. Then used tantalite crusher machine and tantalite grinding mill to get tantalite powder.

Tantalite Crusher

For your industrial tantalum manufacture, the mining or blasted tantalite, ought to be loaded to tantalite production line through the heavy truck. In the starting point, the tantalite ore ought to be transported into tantalite jaw crusher, impact crusher or gyratory cone crusher for your primary crusher by belt conveyor.Which crushing machine you choise based on the size of the tantalite. After tantalite crushing processing line and the vibrating screen, how big tantalite under 3 inch is going to be transported into tantalite vertical roller grinding mill or tantalite roller ball mill for grinding. How large tantalite above 3 inch is going to be vibrating and recovery for that second crusher process by vibrating screen. The procedure is going to be going on before tantalite ore below 3 inch.

Tantalite Grinding Plant

The pulverizing tantalite ore in the roller ball mill or vertical roller grinding mill or raymond mill, will be grinded into tantalite powder about 0.2 mm while using grinder roll, grinding ring and steal balls (iron shots). The grinded tantalite powder will probably be seem like tantalite slurry. Finally, the tantalite slurry will be pumped to the flotation deck using the fine sulfide ore (0~0.5 mm) going to froth flotation cells for recovery of tantalite powder. Then tantalite powder will be transported into industrial tantalum machine to obtain tantalum.
The tantalite grinding processing plant possess the production capacity from 5t/h to 39tph per unit. The more fine you need the greater less the production capacity will be.

Process of cement ball mills

Traditional methods, the ball mill during the processing of materials usually can play two effects, one is broken effect, one is the grinding effect. General sense, breaking effect can be broken using other ancillary equipment to complete.The ground level of the direct effect of the impact of factors can be attributed to the control of ball speed.

As a general rule, the speed of ball mill mainly from the basic power distribution equipment and gear drive gear and pulley device control.For large ball, since the drive motor to start the beginning of a great loss when the energy, and because the ball inertia force can not effectively use reducer mill to effectively control the speed in a short time.In cement production, cement ball mill into production, its breakdown of the number of cement particles and cement products taste directly linked to the size of ball speed.Well, that is, as long as improve their speed and the speed control system through the material out of a difference in their level of production or output to maintain a constant speed changes can greatly status companies to create more profits. However, because there are some reverse gear torque limit, can not indefinitely increase the speed of ball mill, after reaching a certain level, if that deliberately continue to increase speed, often driven gear coil mill burned, resulting in equipmentdiscontinued, the general maintenance cycle mill in 1-2 weeks.Such consequences are no different from a serious economic consequences for enterprises.

Correct operation of the cement ball mill method
1.planetary ball mill gear dust cover must be tight to prevent dust, sand intrusion.

2.if found with the main gear bearing sediment may or invasive treatment should be immediately stopped and cleared, and definitely not delay.

3.the planetary ball mill large tile heating, the occurrence of an accident or near Burnt Burnt should take immediate measures for forced cooling may not be immediately stopped, to avoid causing “axle” vicious accident.

4.must be strictly enforced to the mining, water supply, add the ball of the provision prohibiting overload, attention to prevent “belly up” phenomenon, while to the amount of ore is not too small.Also not allowed to load Operation, avoid to damage the liner.

5.fixed ball screws should be added hemp liner ring seal to prevent leakage, leakage of slurry.

6.the gap between the liner for the 10-20mm for the replacement (available when oxygen welding cutting too tight).

7.the planetary ball mill no more than two consecutive start, the first and second should be an interval of 5 minutes.Starting the third time must be approved by electricians, fitters with the examination before starting.

8.the same workshop with several ball shall not also start two synchronized machine.

Coal Ore Mining and Crushing Plant

Coal has played an important role in modern industry. The coal is processed and crushed to boost the efficiency and protect environment. In order to use coal more rationally, wisely, the coal have to be processed and crushed into different sizes, 0 ~ 25 mm particle size for coal gas stove , 25 ~ 8 mm for steam locomotive, 25 ~ 6 mm for that industrial furnace, and coal power plant requires grain coal of 0 ~ 25mm.

The typical hardness of coal is 1-4. After coarse crushing by jaw crusher, fine crushing by impact crusher, and sieved by vibrating screen, coal may be processed and crushed into different sizes of the requirements. Kefid jaw crusher, impact crusher for coal crushing are already popular within the coal industry and mining industry, because of its high and unique quality. They are able to crush coal most importantly quantity and high efficiency. In addition,  Kefid impact crusher can crush coal into much smaller sizes to fulfill specific requirements

Large coal enterprises attach much importance to crushers’ capacity, quality, maintenance and also the cost-effectiveness in the long term.  Kefid crawler type mobile crusher minimizes the equipment downtime and integrates the coal conveying and crushing, thus greatly cuts down on use cost. It’s favored by large coal enterprises, especially coal mine, because it meets their requirements for high capacity and efficiency processing of the coal.

Coal crushing plant mainly includes many coal equipments. From Kefid you may get coal crusher and coal mill.
Jaw crusher is easily the most commonly used coal crusher machine in coal handling process. Based on our experience, we realize that jaw crusher is requested the content of huge waste rock solid or brown coal of the broken iron. Being a primary crusher of coal crushing plant,  Kefid jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. It is widely applied to crush high hardness, mid hardness and soft rocks and ores for example slag, construction materials, and coal ore etc. According to its features and dealing principle, choosing  Kefid jaw crusher for coal crushing plant is the right choice.

Depending on the characteristics of coal, many stone crushers may be used in coal crushing plant. JC series jaw crusher is definitely an upgrade of jaw crusher; impact crusher crushes materials with impact force. As well as other crushers are crushed for coal including spring cone crusher, CS cone crusher, hydraulic cone crusher,  impact crusher and so on. Also, some of our new type mobile crusher station may be used for coal crushing process. Large coal enterprises attach much importance to crushers? Kefid crawler type mobile crusher minimizes the equipment downtime and integrates the coal conveying and crushing, thus greatly cuts down on use cost. It really is popular with large coal enterprises, especially coal mine, because it meets their requirements for high capacity and efficiency processing from the coal.

Kefid can be a coal mining machine manufacturer in China. It supplies a variety crushing machines and design stone crushing production line in line with the requirements of customers, such as aggregate rock crushing plant, iron ore crushing plant, coal crushing ang grinding plant for sale with best price.

Raymond Mill

Kefid company specializes in producing medium and large Raymond mill, with 22 years manufacturing experience in powder milling filed, we have been a leading grinding mill manufacturer and supplier in China. R series Raymond mill is optimized by our experts, combines low consumption, low investment, and environment friendly, small occupation area, it is more efficiency than the traditional Raymond mill.

Raymond mill is widely used in metallurgy, construction materials, chemicals, ores to produce powder, which is suitable for non-flammable and non-explosive ores with Mohs hardness below 9.3, humidity below 6%, such as Gypsum, talc, calcite, limestone, marble and feldspar, barite, dolomite, granite, kaolin, bentonite, stone, bauxite, iron oxide red, iron ore and so on. Fineness of product ranges from 0.613mm to 0.44mm. With joint effects of analyser and fan, different requirements of customers can be fulfilled. It is the ideal equipment for grinding industries, especially suitable for small and medium enterprises.


  1. Raymond mill adopts a vertical structure, which is small in working area, and easy to be allocated as a set, each process from bulk material to powder product can be a independent production system.
  2. Finished powder has even fineness, a screen passing ratio of 99%, which is not possible for other mill equipment.
  3. Drive unit is the closely sealed gear box and belt wheel, which is stable in transmission and reliable in operation.
  4. Key parts of the raymond mill are all high-quality style, wearable parts are of high-performance abrasion resistant material. The whole equipment has perfect performance, reliable operation. Blade frame of the main engine is always contacting with materials. Thus the blade frame is composed of two parts, while bottom frame is worn, discharge is continuous and changeable.
  5. Electrical system adopts contracted control, grinding workshop can basically run without people, and is convenient to maintain.
  6. Less dust and lower noise.

Technical Parameter :

Mm to inch conversion: 25.4millimeters=1 inch
The humidity and hardness of raw material will affect the fineness and capacity.

Model 3R2115 3R2615 3R2715 3R3016 4R3216
Roller Number 3 3 3 3 4
Diameter (mm) 210 260 270 300 320
Height (mm) 150 150 150 160 160
Ring Inside diameter (mm) 630 780 830 880 970
Height (mm) 150 150 150 160 160
Maximum feed size (mm) 15 15-20 15-20 15-20 20-25
Output size (mm) 0.044-0.165 0.044-0.165 0.044-0.165 0.044-0.165 0.044-0.165
Power of main frame (kW) 15 18.5 22 30 37
Fineness of final product (mm) 0.165 capacity (t/h) 1.2-1.8 1.8-2.5 2.3-2.8 2.6-3.2 3.2-4.5
0.075 0.6-1.2 1.2-1.8 1.8-2.3 1.9-2.6 2.4-3.1
0.044 0.6-1.0 0.8-1.2 0.9-1.7 1-1.9 1.8-2.5

Note: We hold the rights to modify the design and specification of our products, any modification shall not be advised additionally.

Jaw Crusher

Kefid has been a China leading manufactuer of PE series jaw crusher and JC series jaw crusher for more than 20 years. Jaw Crusher are used to crush  mineral ore with compression resistance below 320 MPA into medium-size products. It is divided into rough crushing and fine crushing. The series crusher specifications are complete, its input size is between 125 and 750 millimeter it is the first choice for primary crushing. Jaw crushers are widely used in mineral ore crushing, metallurgy, construction material making, highway, railway, water conservancy and chemical industry.

PE Series Jaw Crusher

Jaw CrusherAs the domestic leading manufacturer in crushing and screening area, our products have reached world-level advanced standard. PE Jaw Crusher, as the first choice of primary crushing, can be divided into coarse crushing and fine crushing, the feeding size is125mm~1100mm. PE series of jaw crusher have the features of high crushing ratio, even final size, simple structure, reliable working condition, easy maintenance, low operating cost. and also have these advantages: single equipment saves energy of 15%-30%, system saves energy a times more; the range of discharging opening is big and it can match with different customers’ requirements.

Technical Parameter :

Mm to inch conversion: 25.4millimeters=1 inch

Model Max. Feeding
Size (mm)
Size (mm)
Capacity (t/h) Motor
Power (kw)
Dimensions (mm)
Weight (t)
PE400×600 350 40-100 15-60 30 1700×1732×1653 6.5
PE500×750 425 50-100 50-100 55 2035×1921×2000 10.3
PE600×900 480 65-160 60-168 75 2290×2206×2370 16.5
PE750×1060 630 80-140 100-250 110 2620×2302×3110 29
PE900×1200 750 95-165 160-380 130 3789×2826×3025 54.5
PE1000×1200 850 195-265 315-550 130 3335×3182×3025 57
PE1200×1500 1020 150-300 400-800 160-220 4200×3750×3820 100.9

JC Series of Jaw Crusher

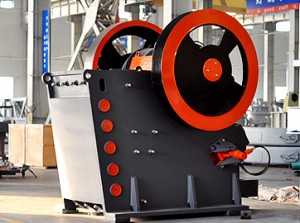

JC Series Jaw CrusherJC series Jaw Crusher is a new type of stone crusher, it has a world-wide advanced crushing technology and producing standard, and the JC series Jaw Crusher can crush the material with high hardness and strong abrasive efficiently. JC jaw crusher have the following features. Integral cast steel bearing matches well with the crusher frame, radial strength of the bearing seat is highly strengthened; crusher chamber adopts “V” structure which could make actual feed width comply with the nominal one; a newly designed tooth-shape side plate, makes the available area of jaw plate longer and enhances the capacity.

Technical Parameter :

Mm to inch conversion: 25.4millimeters=1 inch

Model JC760×1100 JC840×1100 JC1100×1200 JC180×1300 JC250×1000 JC250×1300 JC400×600
Opening Size
760×1100 840×1100 1100×1200 180×1300 250×1000 250×1300 400×600
Max. Feed
Size (mm)
620 720 930 150 220 220 350
Opening Range
75-200 100-225 150-275 10-30 20-40 70-100 35-85
Shaft Speed
270 240 210 320 330 290 250
Capacity (t/h) 150-350 200-500 300-650 12-35 15-50 26-85 15-70
Motor Power
110-132 132-160 185-200 30-37 30-37 37-45 37-45
985 985 740 980 980 980 980
Weight (kg) 24000 32000 59200 6000 6800 7800 8000

Mobile VSI Crusher

Mobile VSI Crusher is a portable crushing plant with VSI crusher and vibrating screening in one body. Kefid mobile vsi crusher is widely used in road and bridge construction, city construction, metallurgy, energy and other departments to implement crushing and screening.The characters of Mobile VSI Crusher is high capacity, suitable for fine crushing, shape adjusting easily, high performance, flexible, integral crushing & screening and belt conveyor self-loaded.

Mobile VSI Crusher Features :

1. High output and wide utilization ratio: compared with traditonal machinery under same power, its production capacity increases 30% and structure is stability.
2. Low comsumption of easy-wear parts.
3. Excellent shaped final products.
4. Lubrication system ensures reliable operation.
5. Over-vibration device is equiped to protect the machine when vibration surpasses a stipulated figure.
6. The adjustable feed hopper guarantees the best quantity of material.
7. Environment friendly.

Technical Parameter :

Model Technical data Y3S154VSI71 Y3S184VSI81 Y3S186VSI92 Y3S216VSI14
Transportation Length (mm) 11000 11300 13500 14000
Transportation Width (mm) 2450 2800 2800 3000
Transportation Height (mm) 4000 4200 4200 4400
Maximum Length (mm) 13000 13300 14500 15000
Maximum Width (mm) 2800 3150 3150 3500
Maximum Height (mm) 5700 6000 6400 6700
Weight (T) 32 36 48 61
Tire Configuration Dualaxial Dualaxial Dualaxial Triaxial
B series VSI crusher B-7611 B-8518 B-9526 B-1140
The maximum Feeding size (mm) 34 38 43 59
Capacity (T/h) 60-180 100-260 150-380 225-520
Belt conveyor under vibraitng screen B650X7M B800X7M B800X8M B1000X8M
Self-loaded belt conveyor B800X3M B800X3M B1000X3M B1200X3M
Vbrating screen 3YZS1548 3YZS1848 3YZS1860 3YZS2160

Note:1. The above model is elementary mobile crushing plant;
           2. We can produce the Mobile VSI Crusher according to customers’ requirement.

Mobile Cone Crusher

Mobile Cone Crusher is new type of stone crushing plant, it is widely used in fine crushing area. According to different stone and different purpose of finished products, mobile cone crusher can instead of impact crusher in aggregates production to produce sand stone products with a higher hardness and more fineness. Configuration of the cone crusher can be adjusted according to actual needs of different crushing chamber type, expanding the scope and areas of cone crusher.

Mobile-Cone-CrusherMobile cone crushing plant mainly consists of high efficient cone crusher, high performance screener, belt conveyor, motor and electric control box etc. Mobile cone crushing plant can be manufactured according to customers’ requirement, in strict accordance with the actual situation of production sites to customize suitable cone crusher, vibrating screen, motor and other equipments. It is of high capacity, high efficiency, medium and fine crushing and strong adaptability etc.

Mobile Cone Crusher Features:

1. The integrating installation of the equipments makes strong coordination. Reasonable and compact spatial distribution saves much time for site construction. It improves the flexibility and avoids lots of infrastructure construction. In this method, invest cost is saved largely.
2. Bottom head of the truck-mounted coarse Portable crusher station is high. Width of the truck is smaller than the operating semi trailer. The turning radius is small and it is easy for road driving and more convenient for driving in the hash hilly environment. It saves much time from start working.
3. Cone Portable crusher acts the function of fine Portable crusher; also it can produce fine grained final products of stones and sands. It will save the cost of materials transporting. At the same time, the lengthened unit can directly send the crushed 120 products to the bin of the truck and the transporting cost is reduced.
4. Cone Portable crusher adopts static pressure principle. The shake will be softer after the second time obstruct. It is easy for installing.
5. The crushing efficiency will be high of bed of materials of cone crusher. It works stable and can save much time to a large extent.
6. The single unit can work separately; also it can be equipped with other unit flexibly to work together. The sideways hopper produces flexible equipments combination for transporting the materials. The diesel motor in the line of integration unit can provide electricity not only to the line itself but also to the equipments combination of the whole system.

Technical Parameter :

Model Technical data Y3S1848CS75 Y3S1860CS160 Y3S216HP220 Y3S1860HP220
Transportation Length (mm) 13500 15200 15200 15200
Transportation Width (mm) 2830 2830 3000 2830
Transportation Height (mm) 4350 4350 4350 4350
Maximum Length (mm) 13700 15245 15245  15245
Maximum Width (mm) 3150 3150 3500  3898
Maximum Height (mm) 5700 6400 6400  6394
Weight (T) 38 46 43.5 42
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Cone crusher CS75 HP160 HP220 HP220
The maximum
Feeding size (mm)
102 C-150
opening size (mm)
9-38 C-13
Capacity (T/h) 45-165 C120-240
Belt conveyor B800X7M B800X8M B1000X8M B800X8M
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160 3YZS1860

Note: Any change of Mobile Cone Crusher technical data shall not be advised additionally.

Mobile Impact Crusher

Kefid PF Series Mobile Impact Crusher is a star crushing machine, which is equipped by the unit configuration, using the latest manufacturing technology, adopting the high-quality chrome blow bar and wear-resisting counterattack lingings, and having great crushing ratio, combined with its own advantage of good particle shape, which enable it to be widely used in various fields.

Mobile-Impact-CrusherMobile impact crushing station is mainly used in the industry of metallurgy, chemical, building materials, water power station which needs to change working site often, especially for processing stones used in high way, railway and so on. Many kinds of designs are for clients’ choices according to different materials, scale and requirement of the final products. Kefid truck mounted mobile impact crusher crushing station especially is suitable for builders’ rubbish crushing in a small working site.

Mobile Impact Crusher Features :

1. It’s a crusher with perfect performance, great crushing ratio and is a leader of powerful crusher.
2. Vehicular motor and an integrated controlling box.
3. Work with the integrated machines of jaw crusher, cone crusher, vertical impact crusher, feeders and vibrating screens.
4. With a vehicled installation of the belt under screen,vibrating screens and crusher.
5. Support of vehicled installation and settlement of equipments are prompt and convenient.
6. Steering traction axis will be helpful for high way transportation and getting close to the working site.

Technical Parameter :

Model Y3S184F1210 Y3S186F1214 Y3S216F1315 Y3S184FW1210 Y3S186FW1214 Y3S216FW1315
Transportation Length (mm) 14200 16000 16000 14000 16000 16000
Transportation Width (mm) 3100 3100 3200 3100 3100 3200
Transportation Height (mm) 4400 4400 4500 4400 4400 4500
Maximum Length (mm) 14600 16400 16400 14400 16400 16400
Maximum width (mm) 3400 3400 3500 3400 3400 3500
Maximum Height (mm) 5100 5500 4700 4700 4700 4700
Weight (T) 35 44.5 47.5 34.5 41.5 48.5
Tire Configuration Dualaxial Triaxial Triaxial Dualaxial Triaxial Triaxial
Impact crusher PF1210 PF1214 PF1315 PFS1210 PFS1214 PFS1315
Feed opening size 400*1080 400*1430 860*1520 570X990 570X1430 625X1530
The maximum Feeding size (mm) 350 350 500 250 250 300
Capacity (T/h) 70-300 90-400 120-450 90-300 120-360 150-440
Belt conveyor B650X7M B800X8M B1000X8M B650X7M B800X8M B1000X8M
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160 3YZS1848 3YZS1860 3YZS2160

Note: Any change of Mobile Impact Crusher technical data shall not be advised additionally.
